These Cutters are furnished for Involute and Parallel Key Splines, Involute and Straight Sided Serrations. For special Spline Cutters, the Drawings of the components should be supplied.

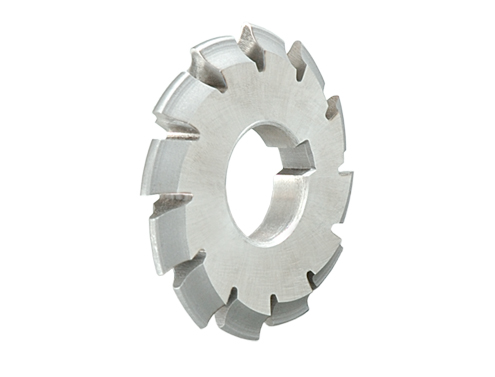

Involute Gear Cutters are supplied to cut any Number of Teeth in Gears from 1 Module to 55 Module and from .5 DP to 50 DP conforming to BS 2518, IS 5698 in a set of 8 Numbers and as per generated Profile.
In Machine Relieved Forms with the Range from 1/4" to 5" pitch conforming to DIN, BS and American Standards. As per BS set of 3 Cutters will cut all the Teeth on the Sprocket Wheel.
These Cutters are furnished for Involute and Parallel Key Splines, Involute and Straight Sided Serrations. For special Spline Cutters, the Drawings of the components should be supplied.
Involute Gear Cutters are supplied to cut any Number of Teeth in Gears from 1 Module to 55 Module and from .5 DP to 50 DP conforming to BS 2518, IS 5698 in a set of 8 Numbers and as per generated Profile.
In Machine Relieved Forms with the Range from 1/4" to 5" pitch conforming to DIN, BS and American Standards. As per BS set of 3 Cutters will cut all the Teeth on the Sprocket Wheel.
These cutters are used to scalping copper & brass strips. Material used is High Speed Steel Imported ( M-2/ M-35) grade.
